定制 CUSTOMIZATIO

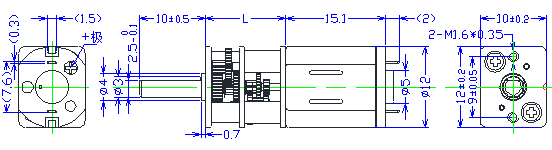

1:轴长 Shaft Lenght
2:轴形状 Shaft Shape
3:技术数据 Technical Date
| 额定电压 Rated voltage | 电机型号 Motor model | 减速比 Reduction ratio | 9.9 | 29.9 | 66.8 | 99 | 150 | 210 | 298 | 380 | 627 | 1005 | |||||
| 箱体长L(mm) Gear box lenght | 6.8 | 6.8 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 12.1 | 12.1 | |||||||
| 3 | HFF-N20VA-11130 | 额定力矩(kgf.cm) Rated torque | 0.02 | 0.05 | 0.15 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 1.0 | 1.2 | |||||
| 额定转速(r/min) Rated speed | 1100 | 372 | 170 | 105 | 69.3 | 48.7 | 35.5 | 28.3 | 16.7 | 10.9 | |||||||
| 堵转力矩（kgf.cm) Stall torque | 0.11 | 0.31 | 0.6 | 0.9 | 1.4 | 1.7 | 2.5 | 3.1 | 4.7 | 6.7 | |||||||
| 5 | HFF-N20VA-09180 | 额定力矩(kgf.cm) Rated torque | 0.03 | 0.08 | 0.15 | 0.2 | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | |||||
| 额定转速(r/min) Rated speed | 1260 | 420 | 197 | 133 | 81.0 | 58.0 | 43.0 | 33.3 | 21.1 | 13.1 | |||||||
| 堵转力矩（kgf.cm) Stall torque | 0.13 | 0.35 | 0.7 | 1.0 | 1.6 | 2.0 | 2.8 | 3.6 | 5.3 | 7.7 | |||||||
| 电机型号 Motor model | 额定电压 Rated voltage | 空载/No Load | 负载/On Load | 备注 | |||||||||||||
| 电流 | 转速 | 扭矩 | 电流 | 转速 | |||||||||||||
| Current | Speed | Torque | Current | Speed | |||||||||||||
| V | mA | r/min | gf.cm | mA | r/min | ||||||||||||
| HFF-N20VA-11130 | 3 | 40 | 13700 | 2 | 140 | 11800 | |||||||||||
| HFF-N20VA-09180 | 5 | 30 | 16800 | 2 | 100 | 14700 | |||||||||||
