定制 CUSTOMIZATIO

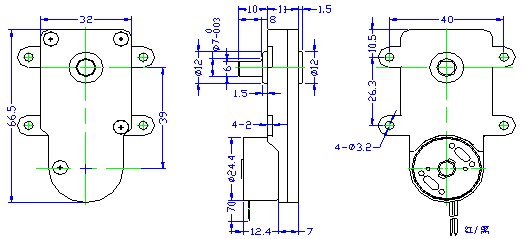

1:轴长 Shaft Lenght
2:轴形状 Shaft Shape
3:技术数据 Technical Date
| 额定电压 Rated voltage | 电机型号 Motor model | 减速比 Reduction ratio | 119 | 207 | 321 | 534 | |||||||||
| 3 | RF-300CA-12350 | 额定力矩(kgf.cm) Rated torque | 0.3 | 0.5 | 0.8 | 1.5 | |||||||||
| 额定转速(r/min) Rated speed | 26.8 | 15.1 | 9.7 | 5.6 | |||||||||||
| 堵转力矩（kgf.cm) Stall torque | 1.5 | 2.3 | 3.5 | 5.9 | |||||||||||
| 12 | RF-300CA-09400 | 额定力矩(kgf.cm) Rated torque | 0.8 | 1.0 | 1.5 | 3.0 | |||||||||
| 额定转速(r/min) Rated speed | 86.5 | 53.1 | 34.5 | 19.7 | |||||||||||
| 堵转力矩（kgf.cm) Stall torque | 3.2 | 5.0 | 7.8 | 12.9 | |||||||||||
| 电机型号 Motor model | 额定电压 Rated voltage | 空载/No Load | 负载/On Load | 备注 | |||||||||||||
| 电流 | 转速 | 扭矩 | 电流 | 转速 | |||||||||||||
| Current | Speed | Torque | Current | Speed | |||||||||||||
| V | mA | r/min | gf.cm | mA | r/min | ||||||||||||
| RF-300CA-12350 | 3 | 25 | 4100 | 5 | 100 | 3000 | |||||||||||
| RF-300CA-09400 | 12 | 47 | 14000 | 5 | 115 | 12300 | |||||||||||
