定制 CUSTOMIZATIO

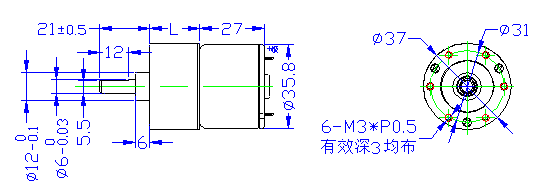

1:轴长 Shaft Lenght
2:轴形状 Shaft Shape
3:技术数据 Technical Date
| 额定电压 Rated voltage | 电机型号 Motor model | 减速比 Reduction ratio | 6.9 | 15.8 | 37.4 | 88.4 | 151 | 209 | 407 | 645 | |||||
| 箱体长L(mm) Gear box lenght | 18.3 | 21.3 | 23.8 | 26.3 | 26.3 | 28.8 | 28.8 | 31.3 | |||||||
| 24 | RK-36ZY-10500 | 额定力矩(kgf.cm) Rated torque | 0.3 | 0.5 | 1.0 | 2.0 | 3.0 | 4.0 | 6.0 | 8.0 | |||||
| 额定转速(r/min) Rated speed | 709 | 328 | 141 | 60.4 | 36.3 | 25.9 | 13.9 | 9.3 | |||||||
| 堵转力矩（kgf.cm) Stall torque | 1.2 | 2.5 | 5.4 | 11.5 | 19.6 | 24.4 | 47.6 | 115 | |||||||
| 24 | RK-36ZY-12335 | 额定力矩(kgf.cm) Rated torque | 0.4 | 0.8 | 1.5 | 3.0 | 5.0 | 6.0 | 8.0 | - | |||||
| 额定转速(r/min) Rated speed | 1120 | 493 | 215 | 92.1 | 54.2 | 39.4 | 21.5 | - | |||||||
| 堵转力矩（kgf.cm) Stall torque | 1.9 | 3.9 | 8.3 | 17.7 | 30.2 | 37.7 | 72.3 | - | |||||||
| 电机型号 Motor model | 额定电压 Rated voltage | 空载/No Load | 负载/On Load | 备注 | |||||||||||||
| 电流 | 转速 | 扭矩 | 电流 | 转速 | |||||||||||||
| Current | Speed | Torque | Current | Speed | |||||||||||||
| V | mA | r/min | gf.cm | mA | r/min | ||||||||||||
| RK-36ZY-10500 | 24 | 45 | 6600 | 50 | 200 | 5100 | |||||||||||
| RK-36ZY-12335 | 24 | 53 | 10000 | 50 | 272 | 8500 | |||||||||||
