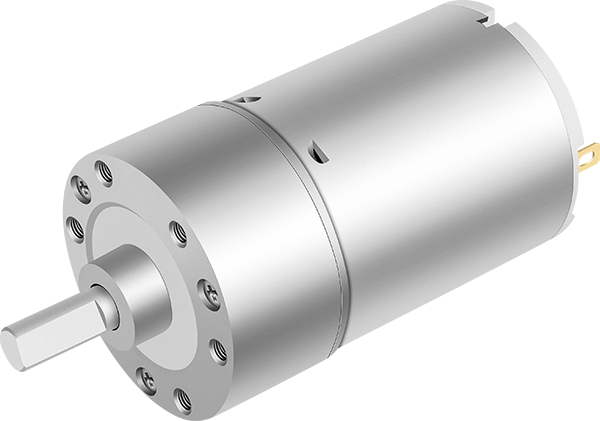

GM37A-535

应用领域/APPLICATIONS

·机械手 Manipulator

·自动售卖机 Vending Machine

·金融机械 Financial Machinery

·工业设备 Industrial Equipment

·医疗设备 Medical Equipment


特征/FEATURES

·双向旋转 Bi-direction

·金属齿轮 Metal Gears

·含油轴承 Sleeve Bearing

·锌压铸齿轮箱 Zinc Die Cast  Gear Case

·碳刷直流电机 Carbon Brush DC Motor

用途案例：

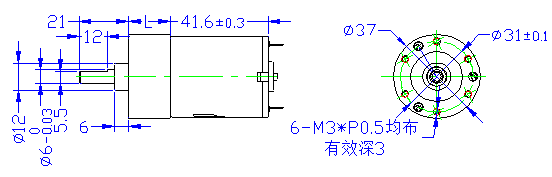

外形尺寸/DIMENSIONS

定制 CUSTOMIZATIO

1:轴长 Shaft Lenght

2:轴形状 Shaft Shape

3:技术数据 Technical Date


齿轮箱参数/GEARBOX DATA

额定电压
Rated voltage		电机型号
Motor model		减速比
Reduction ratio		6.915.837.455.888.4151
箱体长L(mm)
Gear box lenght		18.321.323.823.826.326.3
12RS-535PAV-2297额定力矩(kgf.cm)
Rated torque		0.6 1.0 2.0 3.0 5.0 6.0
额定转速(r/min)
Rated speed		63528812382.450.731.3
堵转力矩（kgf.cm)
Stall torque		3.5 7.2 15.3 22.8 32.5 55.5
24RS-535PAV-22136额定力矩(kgf.cm)
Rated torque		1.2 2.0 3.0 4.0 6.0 -
额定转速(r/min)
Rated speed		93642418712779.8-
堵转力矩（kgf.cm)
Stall torque		7.2 14.9 31.7 47.3 67.4 -

电机参数/MOTOR DATA

电机型号
Motor model		额定电压
Rated voltage		空载/No Load负载/On Load备注
电流转速扭矩电流转速
CurrentSpeedTorqueCurrentSpeed
VmAr/mingf.cmmAr/min
RS-535PAV-22971217054001509004100
RS-535PAV-221362413079001807006800
