定制 CUSTOMIZATIO
1:轴长 Shaft Lenght
2:轴形状 Shaft Shape
3:技术数据 Technical Date
| 额定电压 Rated voltage | 电机型号 Motor model | 减速比 Reduction ratio | 22.5 | 50.6 | 65 | 83 | 115 | 165 | 270 | 420 | |||||

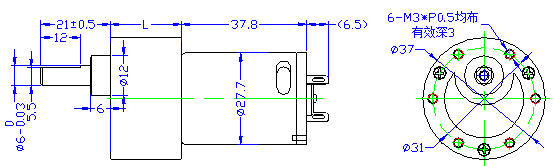

| 箱体长L(mm) Gear box lenght | 21.5 | 24 | 24 | 24 | 24 | 26.5 | 26.5 | 29 | |||||||
| 6 | RS-380PH-2879 | 额定力矩(kgf.cm) Rated torque | 1.2 | 3.0 | 3.5 | 4.0 | 5.0 | 6.0 | 8.0 | 8.0 | |||||
| 额定转速(r/min) Rated speed | 267 | 112 | 89.8 | 72.4 | 53.5 | 37.8 | 23.9 | 16.1 | |||||||
| 堵转力矩（kgf.cm) Stall torque | 6.2 | 12.6 | 16.2 | 20.7 | 28.7 | 37.0 | 60.6 | 84.8 | |||||||
| 12 | RS-385SH-2159 | 额定力矩(kgf.cm) Rated torque | 1.5 | 3.0 | 4.0 | 5.0 | 6.0 | 6.0 | 8.0 | 8.0 | |||||
| 额定转速(r/min) Rated speed | 380 | 170 | 131 | 103 | 77.0 | 56.3 | 35.4 | 23.6 | |||||||
| 堵转力矩（kgf.cm) Stall torque | 7.3 | 14.8 | 19.0 | 24.3 | 33.7 | 43.5 | 71.1 | 99.5 | |||||||
| 电机型号 Motor model | 额定电压 Rated voltage | 空载/No Load | 负载/On Load | 备注 | |||||||||||||
| 电流 | 转速 | 扭矩 | 电流 | 转速 | |||||||||||||
| Current | Speed | Torque | Current | Speed | |||||||||||||
| V | mA | r/min | gf.cm | mA | r/min | ||||||||||||
| RS-380PH-2879 | 6 | 200 | 7600 | 100 | 1500 | 5600 | |||||||||||
| RS-385SH-2159 | 12 | 240 | 11000 | 83 | 1050 | 8952 | |||||||||||
