GM42F2-550/555

应用领域/APPLICATIONS

·机械手 Manipulator

·智能锁/灯具 Smart Lock/Lamps

·自动售卖机 Vending Machine

·金融机械 Financial Machinery

·工业设备 Industrial Equipment


特征/FEATURES

·双向旋转 Bi-direction

·金属齿轮 Metal Gears

·含油轴承 Sleeve Bearing

·锌压铸齿轮箱 Zinc Die Cast  Gear Case

·碳刷直流电机 Carbon Brush DC Motor

用途案例：

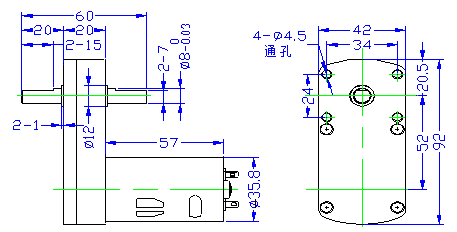

外形尺寸/DIMENSIONS

定制 CUSTOMIZATIO

1:轴长 Shaft Lenght

2:轴形状 Shaft Shape

3:技术数据 Technical Date


齿轮箱参数/GEARBOX DATA

额定电压
Rated voltage		电机型号
Motor model		减速比
Reduction ratio		79.4112153238326574904
12RS-555PH-21122额定力矩(kgf.cm)
Rated torque		8.0 101520303040
额定转速(r/min)
Rated speed		21.5 15.7 10.9 7.3 5.2 3.3 2.1
堵转力矩（kgf.cm)
Stall torque		38.253.966.2103141224352
12RS-555SM-3553额定力矩(kgf.cm)
Rated torque		151520304040-
额定转速(r/min)
Rated speed		59.1 44.2 32.0 20.7 15.2 9.0 -
堵转力矩（kgf.cm)
Stall torque		93.8132163253346549-

电机参数/MOTOR DATA

电机型号
Motor model		额定电压
Rated voltage		空载/No Load负载/On Load备注
电流转速扭矩电流转速
CurrentSpeedTorqueCurrentSpeed
VmAr/mingf.cmmAr/min
RS-555PH-21122127022002004601600
RS-555SM-355312212570024013584930
