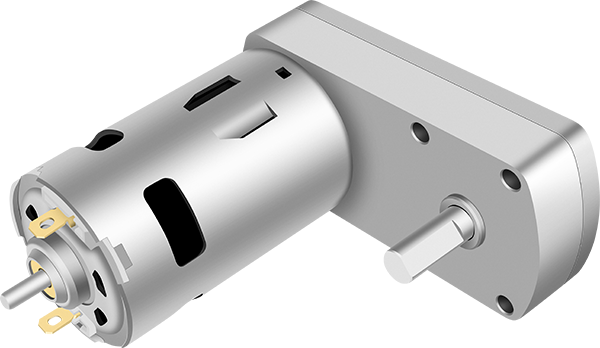

GM42F2-755

应用领域/APPLICATIONS

·机械手 Manipulator

·智能锁/灯具 Smart Lock/Lamps

·自动售卖机 Vending Machine

·金融机械 Financial Machinery

·工业设备 Industrial Equipment


特征/FEATURES

·双向旋转 Bi-direction

·金属齿轮 Metal Gears

·含油轴承 Sleeve Bearing

·锌压铸齿轮箱 Zinc Die Cast  Gear Case

·碳刷直流电机 Carbon Brush DC Motor

用途案例：

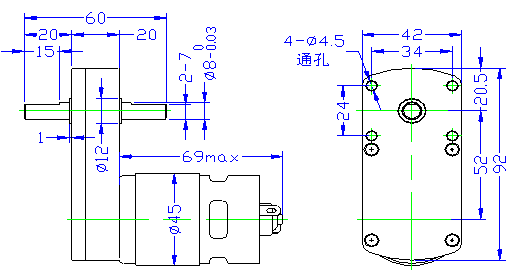

外形尺寸/DIMENSIONS

定制 CUSTOMIZATIO

1:轴长 Shaft Lenght

2:轴形状 Shaft Shape

3:技术数据 Technical Date


齿轮箱参数/GEARBOX DATA

额定电压
Rated voltage		电机型号
Motor model		减速比
Reduction ratio		10.414.979.4112153238326
24RS-755SM-2975额定力矩(kgf.cm)
Rated torque		351525304040
额定转速(r/min)
Rated speed		43929561.0 42.131.520.415.5
堵转力矩（kgf.cm)
Stall torque		16.523.6113159218305418

电机参数/MOTOR DATA

电机型号
Motor model		额定电压
Rated voltage		空载/No Load负载/On Load备注
电流转速扭矩电流转速
CurrentSpeedTorqueCurrentSpeed
VmAr/mingf.cmmAr/min
RS-755SM-297524150570040011504650
