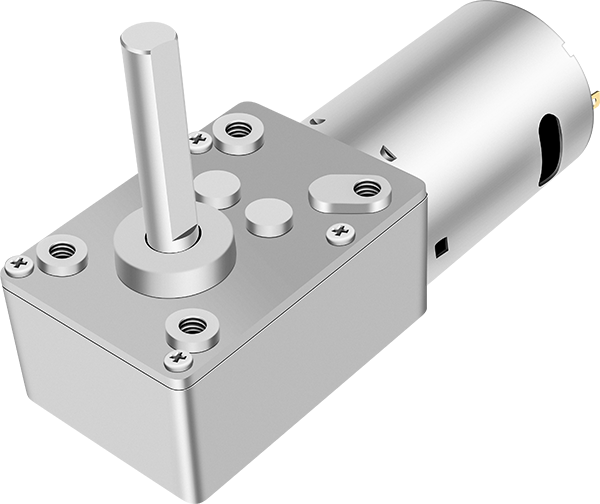

GM4058F-545

应用领域/APPLICATIONS

·模型/机器人/取款机 Model/Robot/ATM

·电动工具 Power Tool

·自动售卖机 Vending Machine

·智能家居 Smart Home

·办公设备 Office Equipment


特征/FEATURES

·双向旋转 Bi-direction

·金属齿轮 Metal Gears

·蜗杆减速箱 DC Worm Gear Motor

·锌压铸齿轮箱 Zinc Die Cast  Gear Case

·碳刷直流电机 Carbon Brush DC Motor

用途案例：

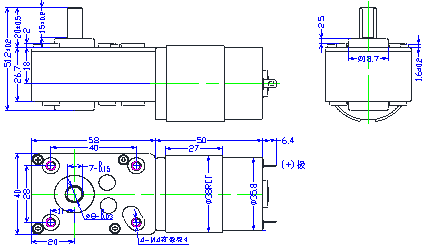

外形尺寸/DIMENSIONS

定制 CUSTOMIZATIO

1:轴长 Shaft Lenght

2:轴形状 Shaft Shape

3:技术数据 Technical Date


齿轮箱参数/GEARBOX DATA

额定电压
Rated voltage		电机型号
Motor model		减速比
Reduction ratio		58.1106208292449728
6RS-545SH-3046额定力矩(kgf.cm)
Rated torque		348152025
额定转速(r/min)
Rated speed		55.532.316.510.87.34.7
堵转力矩（kgf.cm)
Stall torque		15.728.456.970.9111172
24RS-545PH-24100额定力矩(kgf.cm)
Rated torque		510152030-
额定转速(r/min)
Rated speed		10254.829.120.613.4-
堵转力矩（kgf.cm)
Stall torque		36.965.4127162242-

电机参数/MOTOR DATA

电机型号
Motor model		额定电压
Rated voltage		空载/No Load负载/On Load备注
电流转速扭矩电流转速
CurrentSpeedTorqueCurrentSpeed
VmAr/mingf.cmmAr/min
RS-545SH-30466270406815012303241
RS-545PH-2410024160700034012005600
