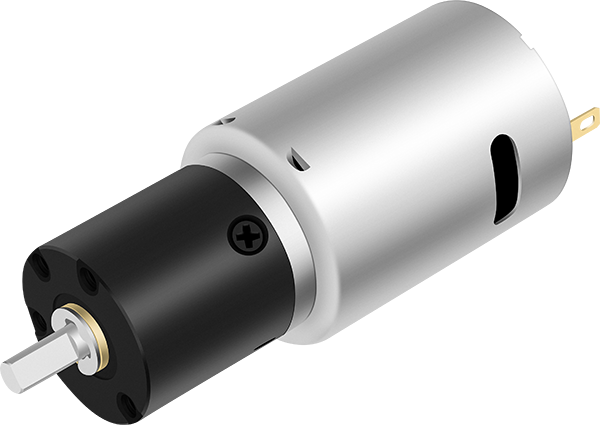

GM22X-385

应用领域/APPLICATIONS

·碎 纸 机 Paper Shredder

·电动工具 Power Tool

·金融机械 Financial Machinery

·工业设备 Industrial Equipment

·医疗设备 Medical Equipment


特征/FEATURES

·双向旋转 Bi-direction

·金属和粉末冶金齿轮 Metal And Powder Metallurgy Gears

·含油轴承 Sleeve Bearing

·(行星)齿轮箱 DC Spur (Planet)   Gear Case

·碳刷直流电机 Carbon Brush DC Motor

用途案例：

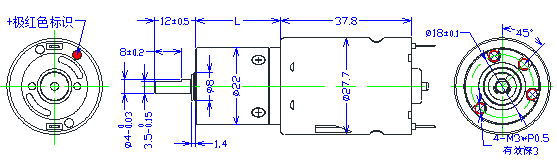

外形尺寸/DIMENSIONS

定制 CUSTOMIZATIO

1:轴长 Shaft Lenght

2:轴形状 Shaft Shape

3:技术数据 Technical Date


齿轮箱参数/GEARBOX DATA

额定电压
Rated voltage		电机型号
Motor model		减速比
Reduction ratio		4616246496256384
箱体长L(mm)
Gear box lenght		19.519.524.524.529.529.534.534.5
24RS-385SAV-12196额定力矩(kgf.cm)
Rated torque		0.20.50.81.22.53.0 6.0 8.0
额定转速(r/min)
Rated speed		145589635023489.862.824.116.4
堵转力矩（kgf.cm)
Stall torque		1.1 1.6 3.7 5.5 12.7 19.1 43.7 65.5
12RS-385SHV-2548额定力矩(kgf.cm)
Rated torque		0.40.71.52.0 4.0 6.0 10-
额定转速(r/min)
Rated speed		2640169564744317111444.8-
堵转力矩（kgf.cm)
Stall torque		2.2 3.3 7.5 11.3 25.8 38.7 88.8 -

电机参数/MOTOR DATA

电机型号
Motor model		额定电压
Rated voltage		空载/No Load负载/On Load备注
电流转速扭矩电流转速
CurrentSpeedTorqueCurrentSpeed
VmAr/mingf.cmmAr/min
RS-385SAV-1219624607300602605900
RS-385SHV-25481229013200120163010700
