GM28X-HCB2867

应用领域/APPLICATIONS

·电 推 车 Trolley

·电动工具 Power Tool

·金融机械 Financial Machinery

·工业设备 Industrial Equipment

·医疗设备 Medical Equipment


特征/FEATURES

·双向旋转 Bi-direction

·金属和粉末冶金齿轮 Metal And Powder Metallurgy Gears

·滚珠轴承 Ball Bearing

·(行星)齿轮箱 DC Spur (Planet)   Gear Case

·无刷电机 Brushless  Motor

用途案例：

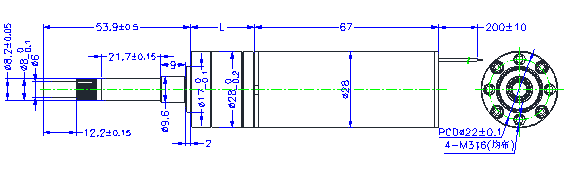

外形尺寸/DIMENSIONS

定制 CUSTOMIZATIO

1:轴长 Shaft Lenght

2:轴形状 Shaft Shape

3:技术数据 Technical Date


齿轮箱参数/GEARBOX DATA

额定电压
Rated voltage		电机型号
Motor model		减速比
Reduction ratio		4516202564
箱体长L(mm)
Gear box lenght		23.223.228.928.928.934.6
12HCB2867N-01A额定力矩(kgf.cm)
Rated torque		1.5 2.0 4.0 6.0 8.0 10
额定转速(r/min)
Rated speed		109586029222417677.3
堵转力矩（kgf.cm)
Stall torque		6.58.222.528.135.177.3
24HCB2867N-02A额定力矩(kgf.cm)
Rated torque		2.0 3.0 6.0 8.0 10 -
额定转速(r/min)
Rated speed		29052240743588470-
堵转力矩（kgf.cm)
Stall torque		13.116.345.0 56.2 70.3 -

电机参数/MOTOR DATA

电机型号
Motor model		额定电压
Rated voltage		空载/No Load负载/On Load备注
电流转速扭矩电流转速
CurrentSpeedTorqueCurrentSpeed
VmAr/mingf.cmmAr/min
HCB2867N-01A12210580020010005200
HCB2867N-02A2430014000300140012900
